Meyer-Goerlitz tripple lens kit from ca. 1920.
The kit comes with three lenses (with original leather dustcovers), adapted to Canon FD mount on bellows (focus by bellows) and then adapted FD to Sony E mount for usage on A7/6-series, covers fullframe with no vignetting. All specially made adapters are included. The lenses can easily be unscrewed from the adapters for original appearance. Also included is 4 beautifully illustrated books and additional 9 catalogues, booklets and price-lists.

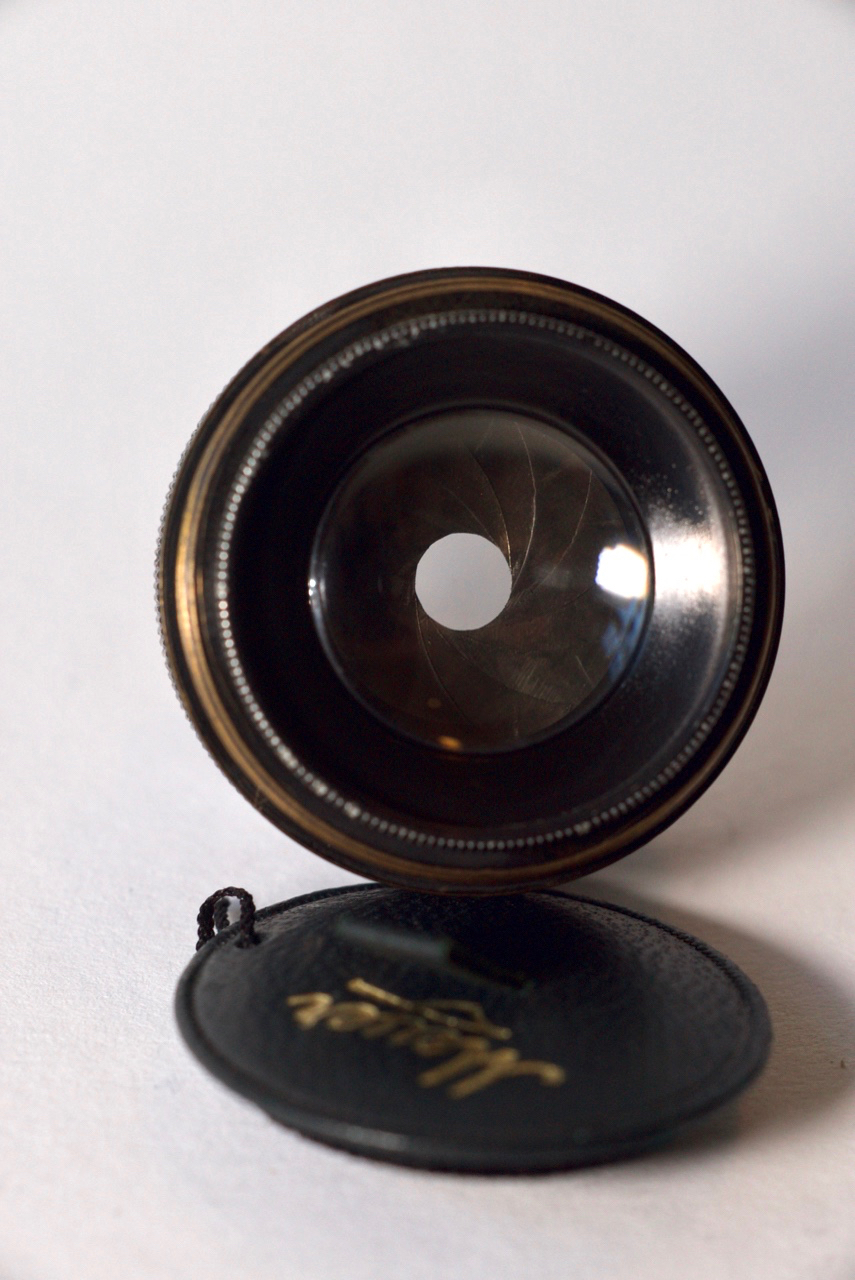

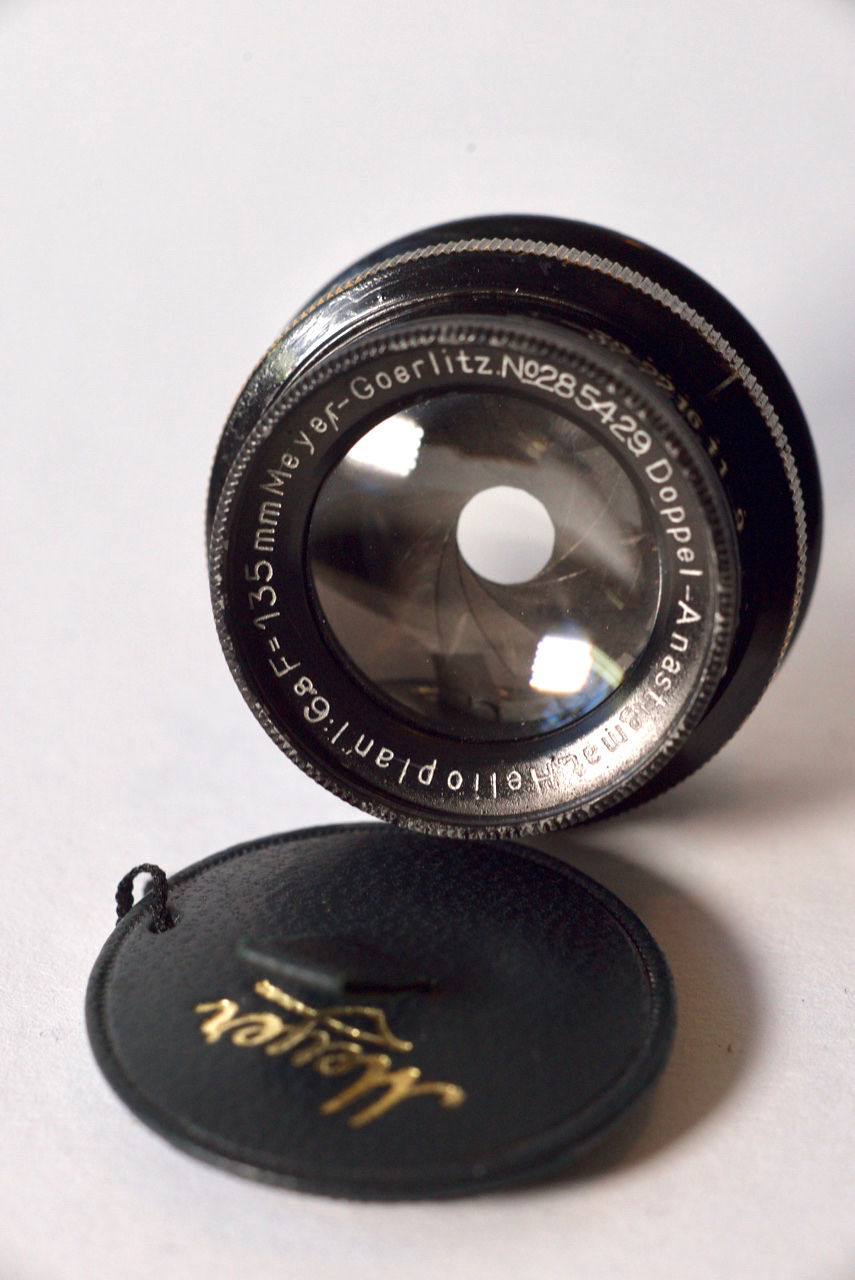

Doppel-Anastigmat Helioplan
The pearl of the kit is the Doppel-Anastigmat.
- Focal length: 13.5cm
- Thread diameter: 33mm
- Aperture: F:6.8-32
- Optics: 6 elements in 2 groups
- Weight: 55g
Glass is clean, no scratches, marks, haze or irregularities. Some small dust particles can be seen. Aperture is free of oil and turning smooth.
Comes with original mint condition leather-cap with Meyer embossed in gold lettering.
Very soft but still energetic bokeh, especially at close range. Since it has no coatings the lens is sensitive to direct light and can give colorful effects and flares.

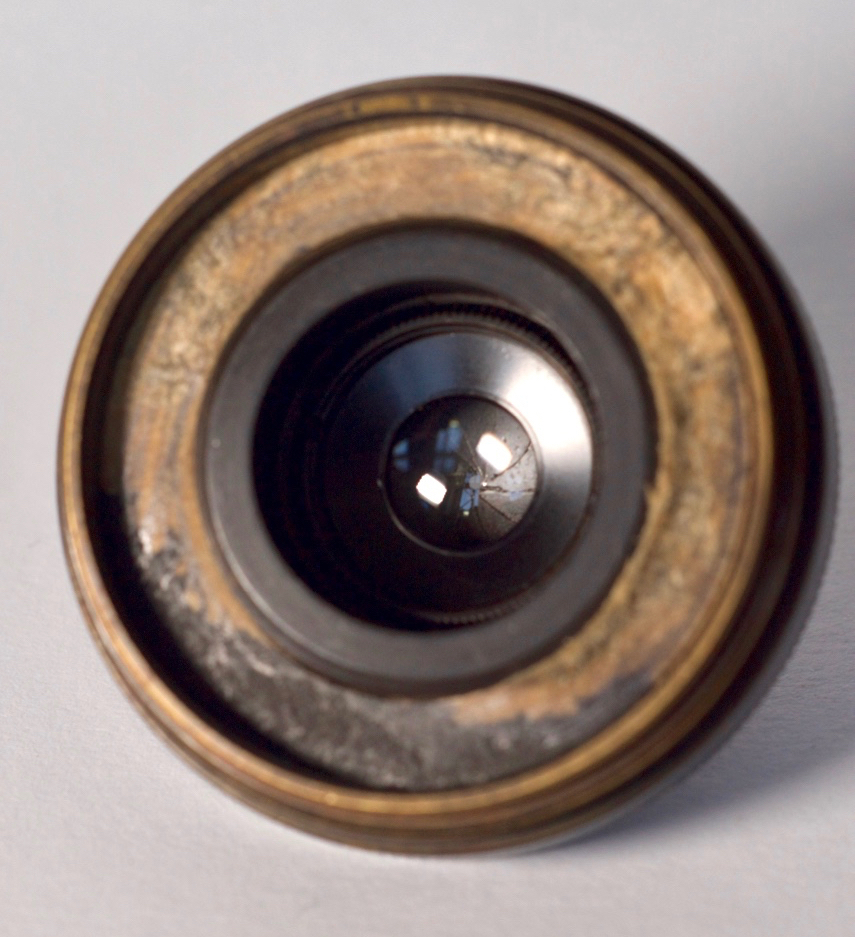

Trioplan
The Trioplan is as an excellent macro lens.
- Focal length: 2.5cm
- Thread diameter: 39mm
- Aperture: F:3-11
- Optics: 3 elements in 2 groups
- Weight: 75g
Glass is clean, no scratches, marks, haze or irregularities. Small dust particles can be seen. Aperture is free of oil and turning smooth.
The Trioplan has a very simple optical design, but surprises by rendering details very sharp, with good contrast and without noticeable distortion.

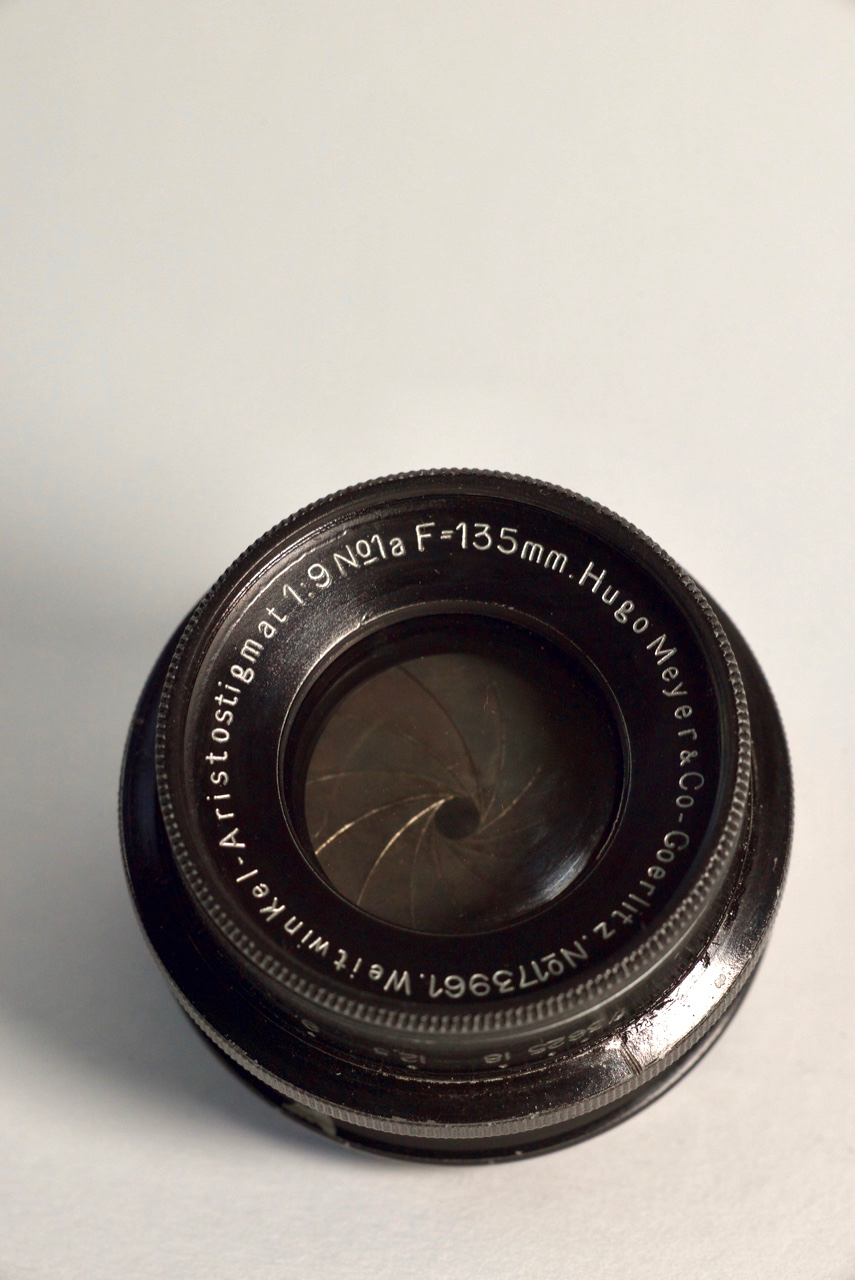

Weitwinkel-Aristostigmat
An anastigmatic and distortion free design from the early 1920!
- Focal length: 13.5cm
- Thread diameter: 34mm
- Aperture: F:9-36
- Optics: 4 elements in 2 groups
- Weight: 70g
Glass is somewhat dirty, no scratches, marks, fungus or irregularities. Dust particles can be seen. Aperture is free of oil but is not turning. Aperture is stuck, it can probably be repaired by a skilled mechanics.
Comes with original leather cover.
With enough light for the small aperture it can capture the world with a special vintage patina to it, low contrast, soft colors and some dirtspots.

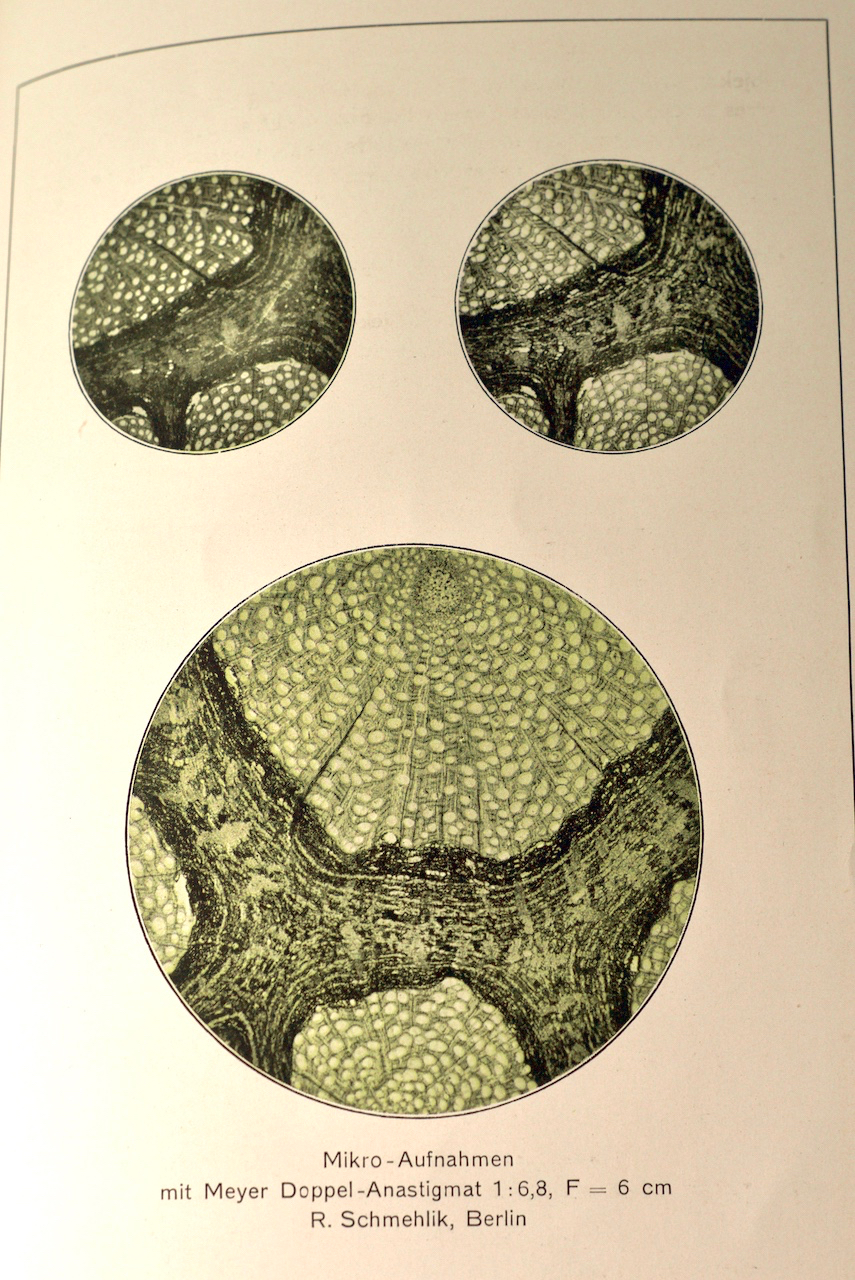

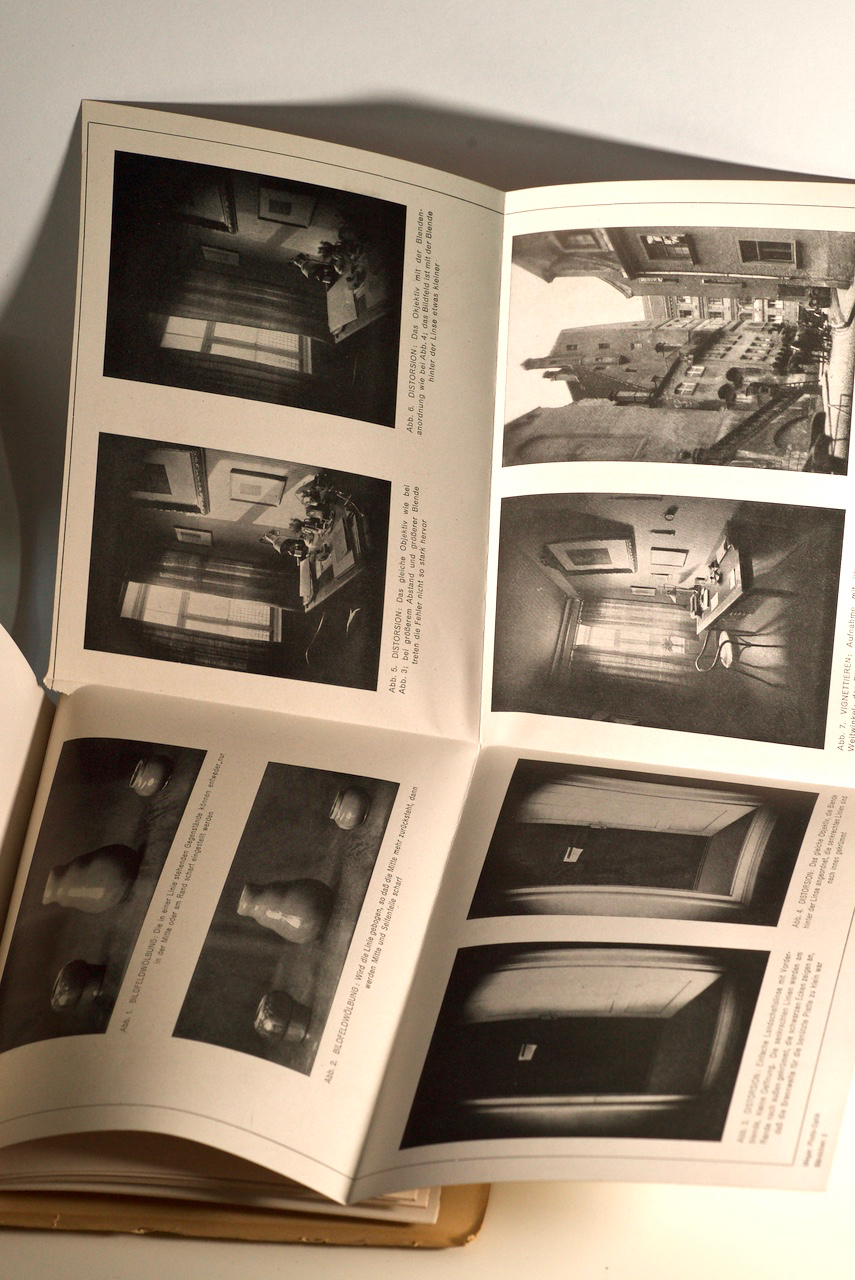

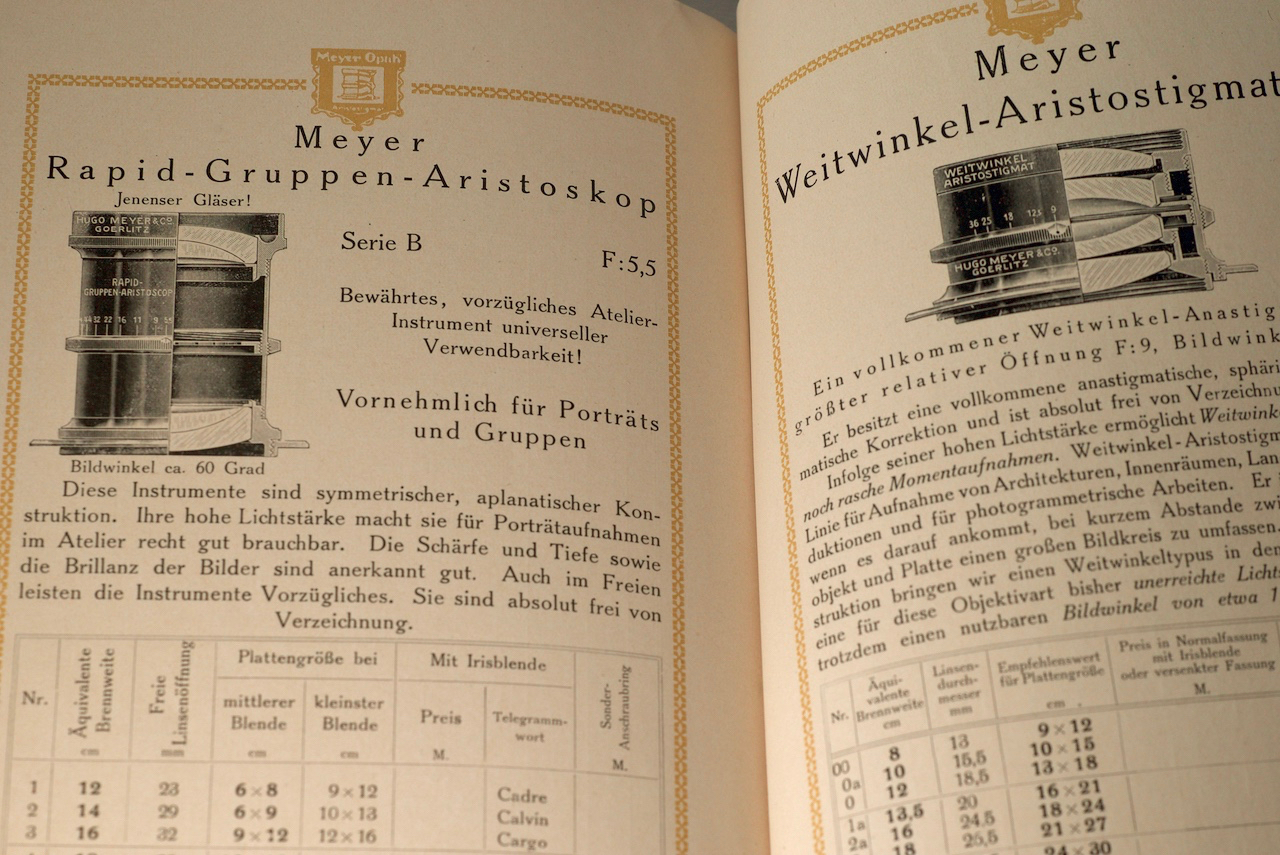

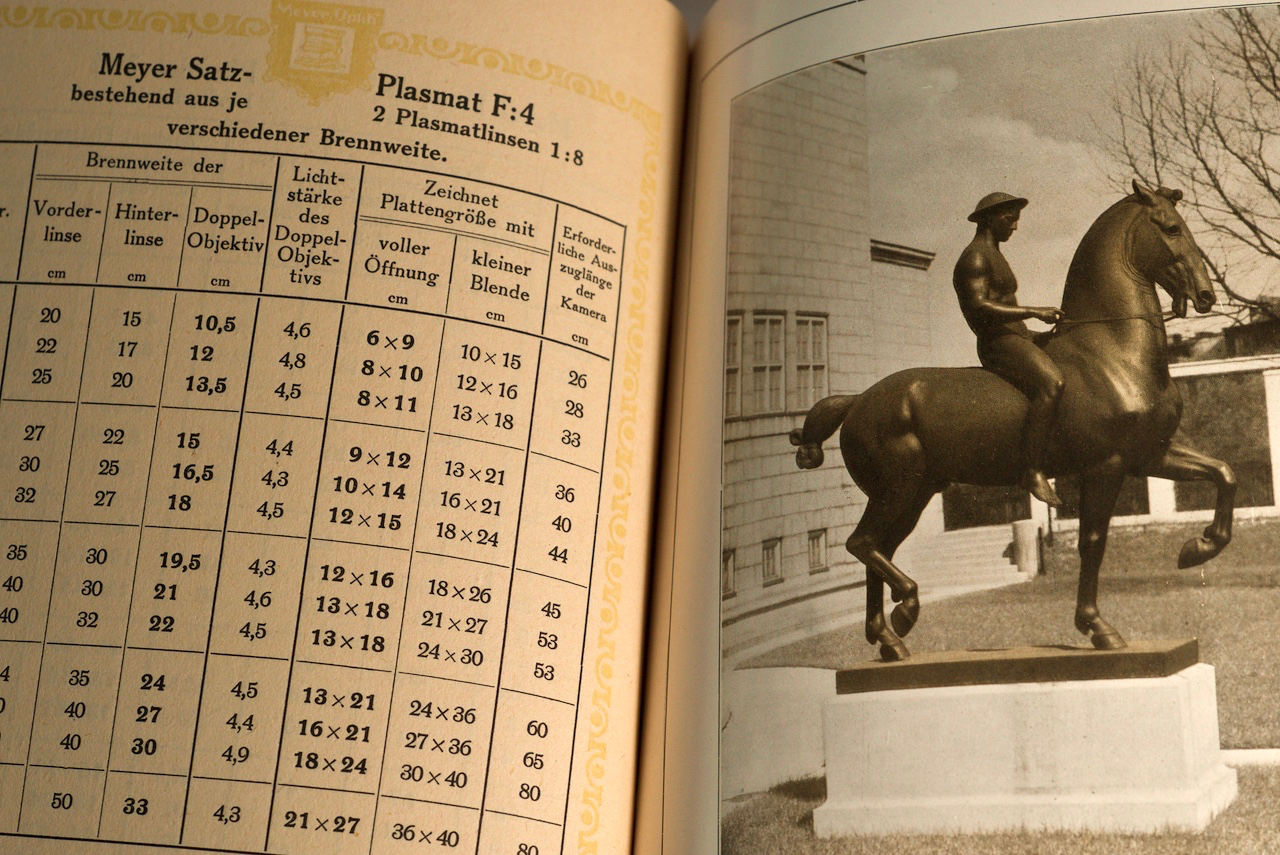

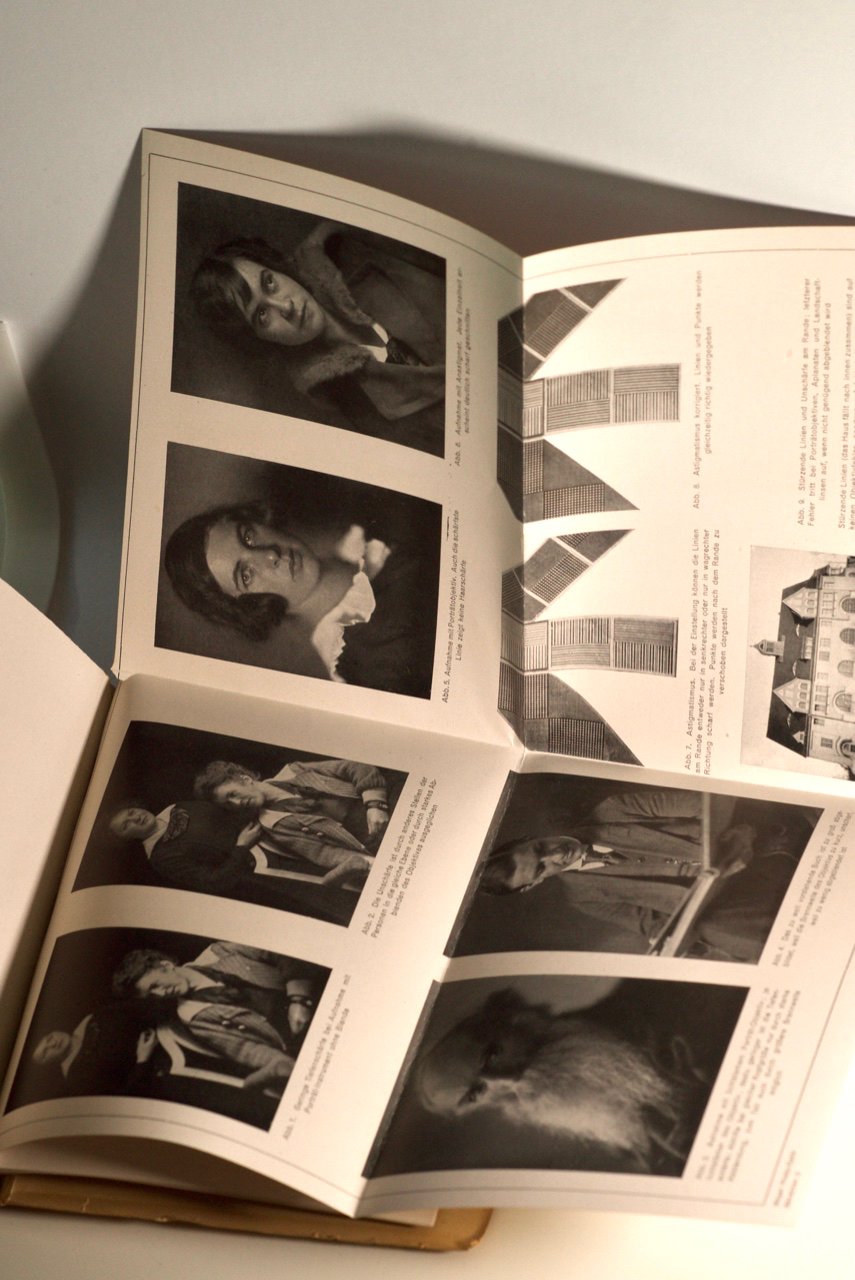

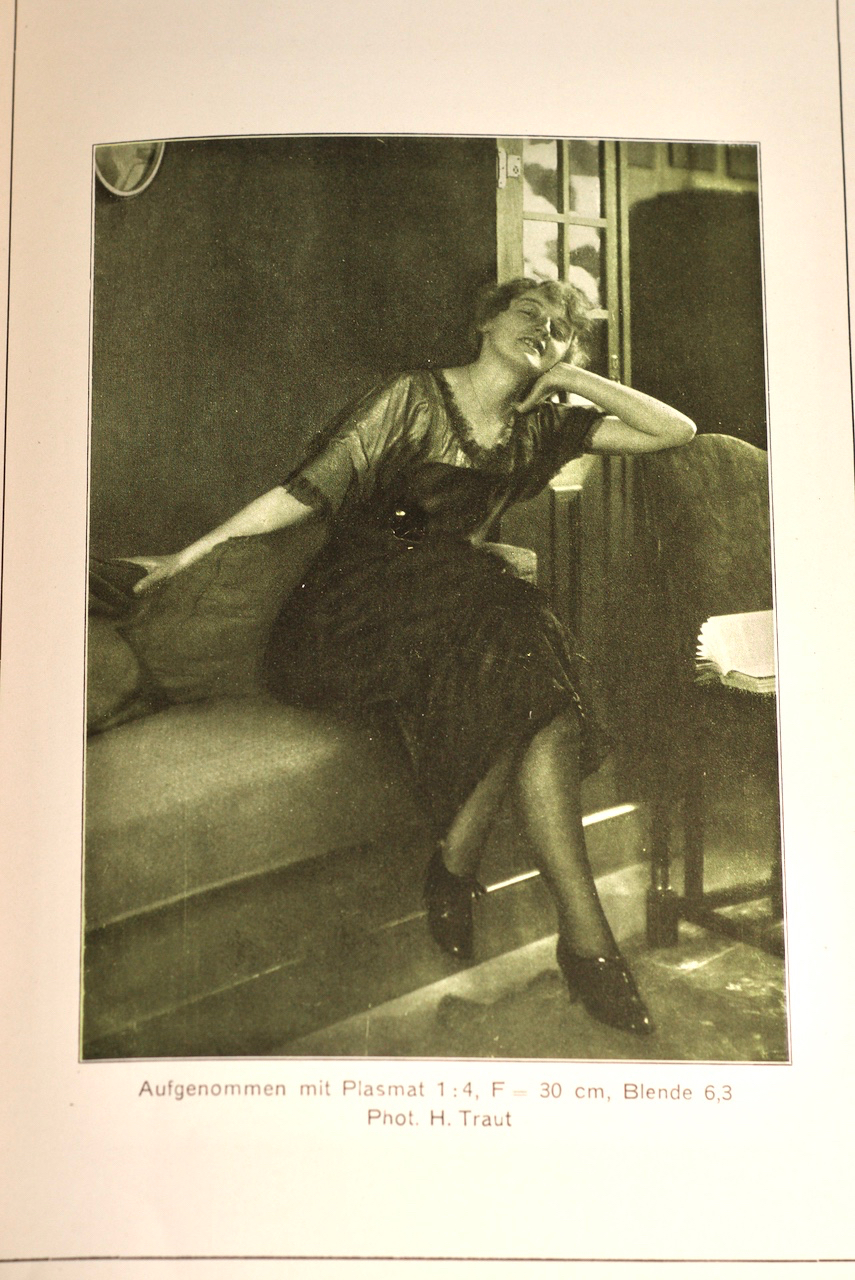

Meyer-Görlitz Books
4 beautifully illustrated books, 9 catalogues, booklets and price-lists. All of them in very good condition.
